Shelf Ovens
Shelf Ovens

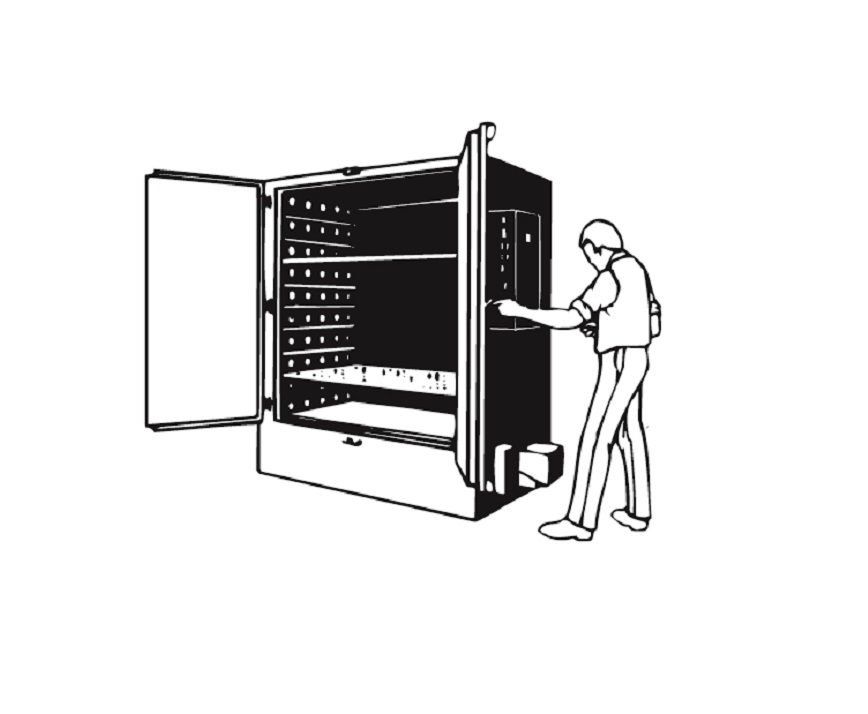

These compact ovens extend only 46 inches from a wall yet provide large work space at low cost. Ideal for shelf processing applications such as baking, drying, curing and preheating.
Shelf Ovens Model Specifications:
CAUTION: Ovens processing combustible material are required by National Fire Protection Association 86 Standard for Ovens and Furnaces (NFPA 86) to have a fire suppression system. If flammable solvents or vapors are present in an oven, OSHA requires conformance with NFPA 86 Class A Oven requirements. A powered forced exhauster and other non-standard safety equipment must be added. See Class A Oven Equipment for Solvent Processing resource page, reference our FAQs or contact us us for more information.
| Model | Workspace | Outside Dimensions*(WxDxH) | Max Temp | Blower | Heat Input | Insulation Thickness | Operating Characteristics† | Approx Shipping Weight | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimensions(WxDxH) | VolumeCu Ft | CFM | HP | ElectricKW | GasBTU/HR | Control Accuracy | Temperature Uniformity | Rise Time (Electric) | Rise Time (Gas) | |||||
| SA-400 | 50" x 30" x 54" | 46.9 | 70" x 46" x 80" | 400°F | 1,000 | 1 | 10 | 132,000 | 6" | ±0.3% | ±4°F | 35 | 20 | 1,675 lbs |
| SA-550 | 50" x 30" x 54" | 46.9 | 70" x 46" x 80" | 550°F | 1,000 | 1 | 15 | 132,000 | 6" | ±0.3% | ±6°F | 60 | 30 | 1,875 lbs |
| SB-400 | 56" x 30" x 60" | 58.3 | 76" x 46" x 86" | 400°F | 1,000 | 1 | 15 | 132,000 | 6" | ±0.3% | ±4°F | 40 | 15 | 1,875 lbs |
| SB-550 | 56" x 30" x 60" | 58.3 | 76" x 46" x 86" | 550°F | 1,000 | 1 | 20 | 132,000 | 6" | ±0.3% | ±6°F | 60 | 25 | 2,085 lbs |
| SC-400 | 68" x 30" x 66" | 77.9 | 88" x 46" x 92" | 400°F | 1,000 | 1 | 20 | 132,000 | 6" | ±0.3% | ±4°F | 20 | 10 | 2,650 lbs |
| SC-550 | 68" x 30" x 66" | 77.9 | 88" x 46" x 92" | 550°F | 1,000 | 1 | 25 | 132,000 | 6" | ±0.3% | ±6°F | 35 | 20 | 2,760 lbs |
* Outside Dimensions
- Blower motor overhang 10″ right side.
- Click here for SA-400-550 dimensions
- Click here for SB-400-550 dimensions
- Click here for SC-400-550 dimensions
† Operating Characteristics
- Accuracy as percent of controller span.
- Uniformity at 50°F below maximum temperature.
- Rise Time in minutes to 50°F below maximum temperature.
- Tests run with empty oven and minimum exhaust.
- Performance will vary with load and application.
- See Control & Instrumentation Summary for additional details.
Specifications for Shelf Ovens
| MODEL | SA-400 |
|---|---|
| MAXIMUM OPERATING TEMP | 400°F |

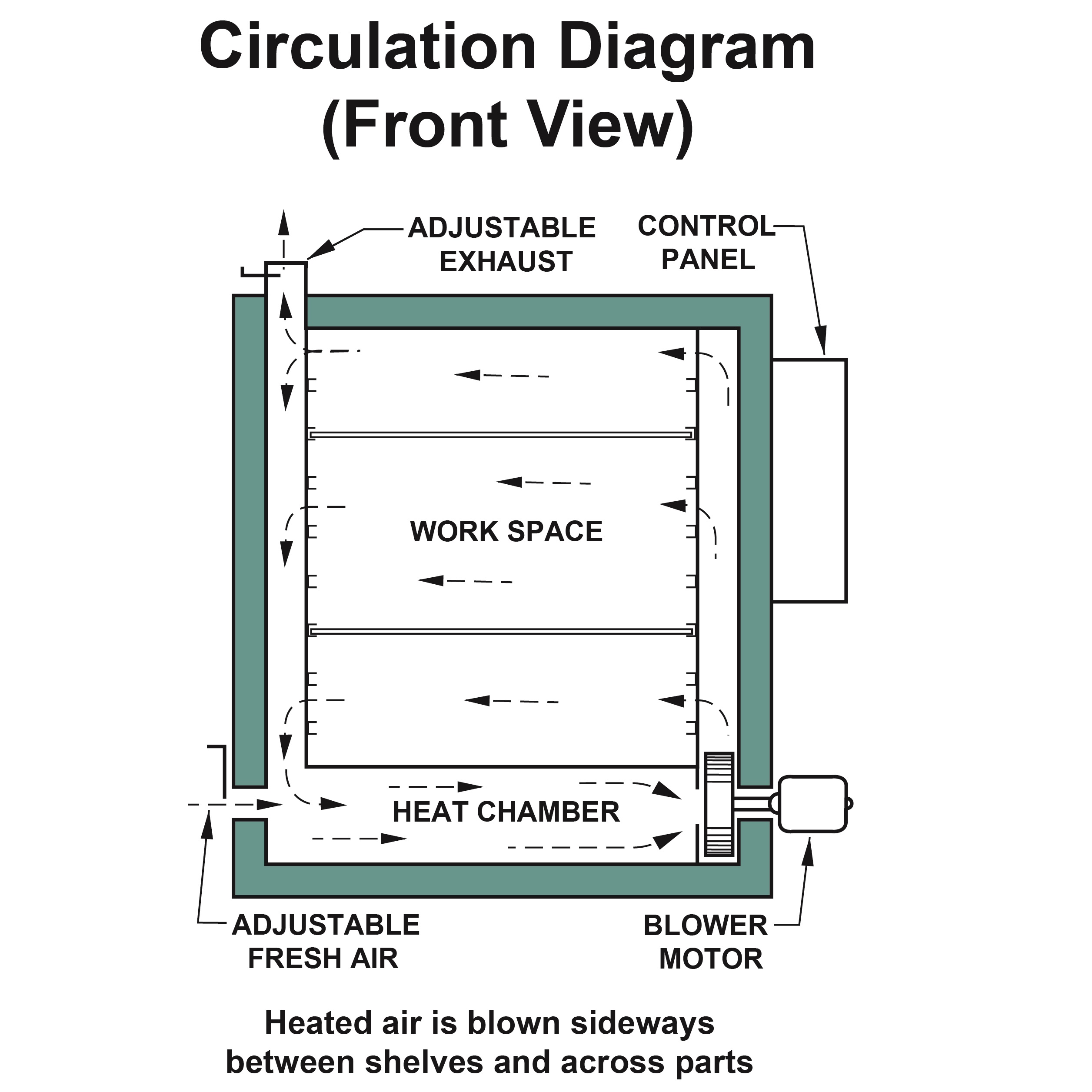

| AIR FLOW | Forced Convection, Side to Side |
| CONTROL ACCURACY | ±0.3% |
| OVEN UNIFORMITY | ±4°F |
| RISE TIME - ELECTRIC | 35 mins |
| RISE TIME - GAS | 20mins |
| WORKS SPACE DIMENSIONS (WxDxH) | 50" x 30" x 54" |
| SHELVES INCLUDED | 2 |
| NUMBER OF SHELVES MAX | 8 |
| SHELF CAPACITY | 100 |
| MAX LOAD CAPACITY | Not Available |
| DOORS | Manual |
| LOADING METHOD | Shelf |
| APPROXIMATE SHIP WEIGHT | 1675 lbs |
| OUTSIDE DIMENSIONS (WxDxH) | 70" x 46" x 80" |
Standard Features for Shelf Ovens
Certifications
- UL Listed Control Panel
- Meets the Requirements of the Following Standards:
- NFPA 86 (Standard for Ovens and Furnaces)
- NFPA 70 (National Electric Code)
- FM (Factory Mutual)
- OSHA
- Caution:
- When processing combustible material fire protection should be considered
- Processing flammable solvents or vapors requires forced exhaust to provide safety ventilation. For more information see Class A Solvent Processing page at this website
Safety Equipment
- Adjustable manual reset excess temperature interlock to turn off heat on malfunction of main temperature controller
- Recirculating blower air flow safety switch to turn off heat on loss of recirculated air flow
- Electrical interlock shuts off heat if power to recirculating blower is interrupted

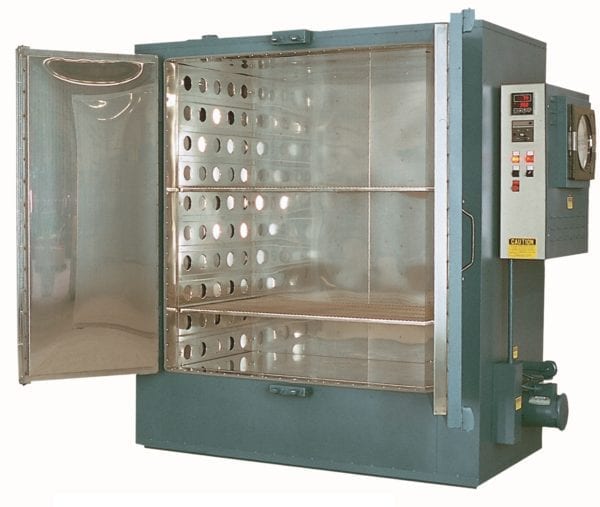

- Electric Heat Includes
- Separate heating element control contactors to turn off heat on malfunction of main control contactors

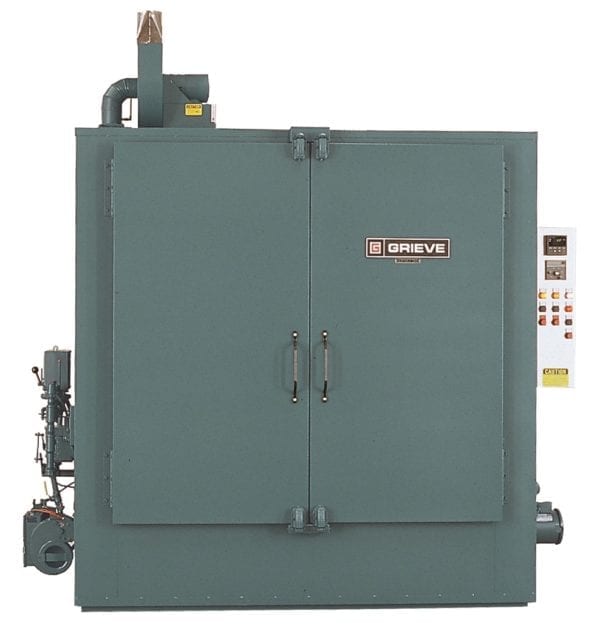

- Gas Heat Includes
- Modulating burner for 1000 BTU per cubic foot natural gas at 6” water column pressure – propane available. Inlet 1” NPT
- Automatic pre-ignition purge period to clear accumulated gas or fumes
- Push button electric ignition
- Microprocessor based electronic flame safeguard protection to continuously monitor flame and close gas valves if flame is not present
- 325 CFM powered forced exhauster to provide combustion venting
- Exhauster air flow safety switch to close gas valves on loss of venting
- Two pilot valves to guarantee gas flow to pilot can be stopped
- High and Low gas pressure switches to confirm safe operating pressure range
- Two main burner safety shut off valves with valve seat position indicator to assure gas flow to main burner can be stopped
- Proof of closure switch on one main valve to prevent igniting pilot unless main valve is closed
- Leak test station at each pilot and main burner valve to allow testing for leakage through valve
Controls
- Digital temperature controller
- Motor control push buttons and on-off heat switch
- LED pilot lights
- 5 kA short circuit current rating (SCCR)
Construction
- Choice of
- Electric or Gas heat
- 208 volt, 230 volt or 460 volt, 3-phase, 60 HZ – other input power available
- All welded construction
- Durable, electrically isolated, Incoloy tubular heating elements
- Heat source located in heat chamber to prevent radiant heating
- High pressure carbon steel recirculating blower
- Full coverage supply and return duct work with adjustable opposed louvers
- Adjustable fresh air intake and 4” diameter (6” on Gas Heat) exhaust outlet damper
- Channel shelf supports prevent shelves tipping
- Insulated with 10 lbs per cubic foot density rockwool insulation
- 304 stainless steel interior with plated hardware
- Aluminized steel exterior with Trilite Green enamel finish
- Brushed stainless steel control panel face
- Heavy duty doors with explosion venting latches
- Silicone rubber door gasket
- Slip flashing at doorway to allow inner oven to expand without affecting door sealing
- Fully assembled and factory tested for temperature uniformity
- 1 year limited warranty
Modifications & Accessories for Shelf Ovens
-
Nickel Plated Carbon Steel Shelf
Oven accessory adding a nickel plated carbon steel shelf with maximum distributed load of either 50lbs 100lbs, or 200lbs depending on the oven model.
-
Stainless Steel Shelf
Oven accessory adding a Stainless Steel Shelf with maximum distributed load of either 50lbs, 100lbs or 200lbs depending on oven model.
-
Programmable Temperature Controller
Oven modification adding a programmable Temperature Controller. Microprocessor based, digital indicating, thermocouple actuated, in lieu of standard controller.
-Program Parameters: 40 profiles of up to 50 steps each, a real-time clock with battery backup to allow starting profile at any time of day
-Digital Display, 4.3” color touch screen
-Accuracy, ±0.1% of span plus 1 degree display error
-Connectivity, Relay output for alarm or other notification, two (2) USB ports, Ethernet compatible
Also Available:
-Up to four (4) control channels of temperature, relative humidity or vacuum
-Monitor up to16 sensors
-Math and logic functions
-Digital inputs and outputs
-Data logging
-Graphic Trending
-
Recording Thermometer
Accessory adding a Recording Thermometer. Thermocouple actuated.
- Record: 10″ diameter circular chart 24 hour chart rotation
- Digital Display: 0.56″ high, LED, alphanumeric, 4 digit display; LED status display
- Accuracy: ±0.25%of span plus 1 degree display error
-
SCR Power Controller
Electrical modification adding an SCR Power Controller. Features:
•Silicon controlled rectifier power controllers are completely solid state industrial controllers that ensure precise proportioning of electric power to the heating elements.
•Oven temperature is maintained smoothly and evenly over the entire temperature range of the unit.
•SCR power controllers minimize maintenance, as there are no moving parts or electrical contacts to wear out.
•Heating element fatigue is reduced since the elements do not cool between releases of electric power.
•Zero voltage firing, including the first one half cycle of voltage, minimizes radio frequency and electromagnetic interference.
•Transient voltage suppressor networks are included, and the units are provided with protective fusing.
-
Digital Shut Down Timer
Accessory adding a Digital Shut Down Timer. Shuts down oven, selectable range, continuous “hold” feature.
-
Install Customer Supplied Temperature Controller
Modification installing a customer supplied temperature controller in lieu of standard controller.
-
Digital Batch Timer
Oven modification adding a Digital Batch Timer. Uniformly timing batch operations, continuous alarm with door interlock, alarm sounds at end of preset time until door is opened or timer reset.
-
Supply Oven Without Controller
Supply without temperature controller. Supply cutout, thermocouple, and wires only. Customer to supply and install temperature controller.
Custom Ovens
-

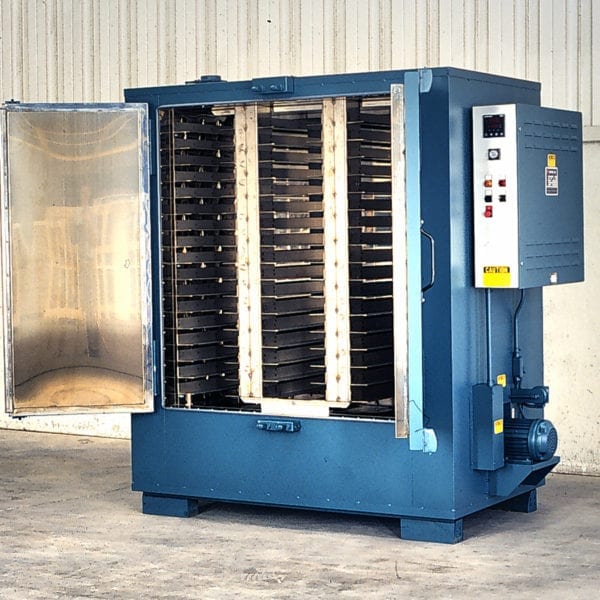

Modified Model SA-550 Shelf Oven
Serial #: 610480Ore sample drying oven with three vertical sections each capable of holding seventeen pans.
- MAX TEMP: 550ºF
- WORKSPACE DIMS (WxDxH): 50" x 30" x 54"
-

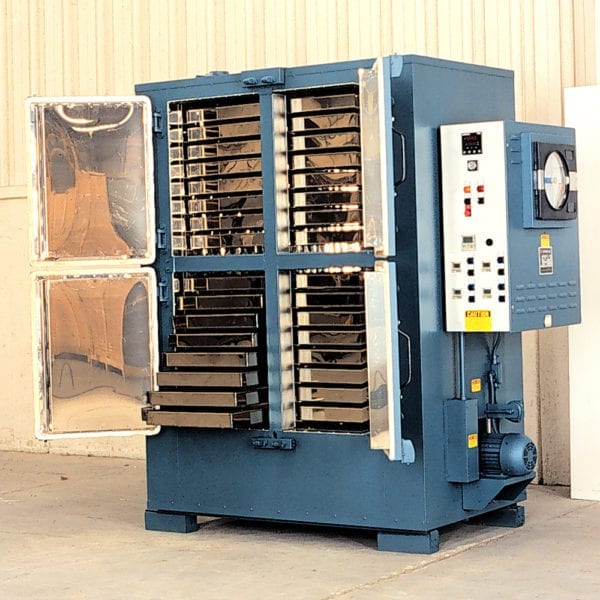

Modified Shelf Oven
Serial #: 610496Four independent doors with timer for each and thirty-two trays for drying powdered resin
- MAX TEMP: 550ºF
- WORKSPACE DIMS (WxDxH): 44" x 30" x 60"
-

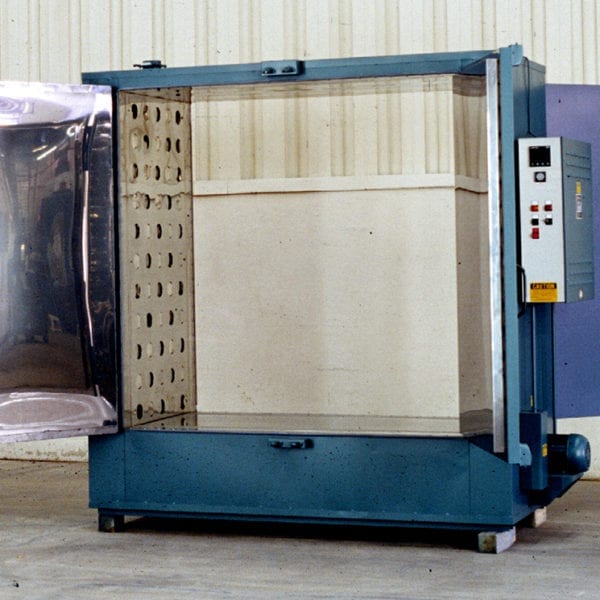

Modified Model SC-350 Shelf Oven
Serial #: 630280Double doors front and rear with work space floor reinforced for 5000 lbs. loading for storing rack of bottles
- MAX TEMP: 350ºF
- WORKSPACE DIMS (WxDxH): 68" x 30" x 66"
-
Modified Model SC-400 Shelf Oven
Serial #: 630275Double pane Lexan window in each door and remote control panel
- MAX TEMP: 250ºF
- WORKSPACE DIMS (WxDxH): 68" x 30" x 66"
-

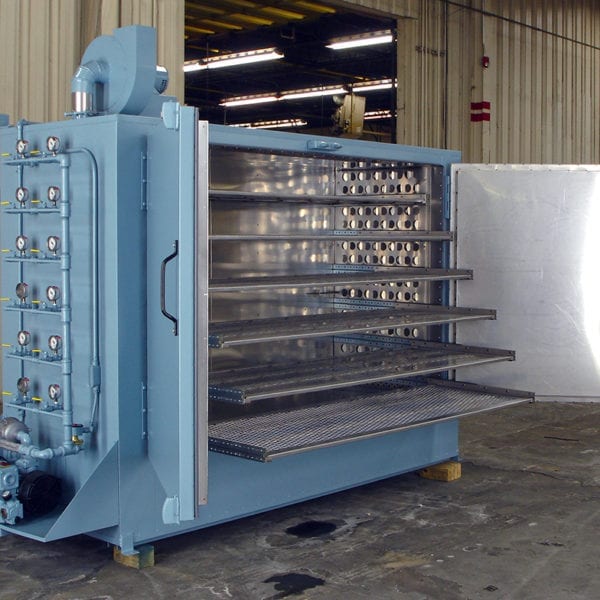

Modified Model SC-350 Shelf Oven
Serial #: 95212A080812 port vacuum manifold with separate valve and gauge connected to vacuum pump. Shelves supported by ball slides.
- MAX TEMP: 350ºF
- WORKSPACE DIMS (WxDxH): 84" x 30" x 54"
